Navigating Smart Docs

Smart Docs is a canvas-based document editor built into your project. It reads directly from your Schedules so any product data, fields, and updates flow through automatically. This article covers where to find Smart Docs and how to work in the editor.

​

Opening Smart Docs

There are two ways to open a Smart Doc from a project:

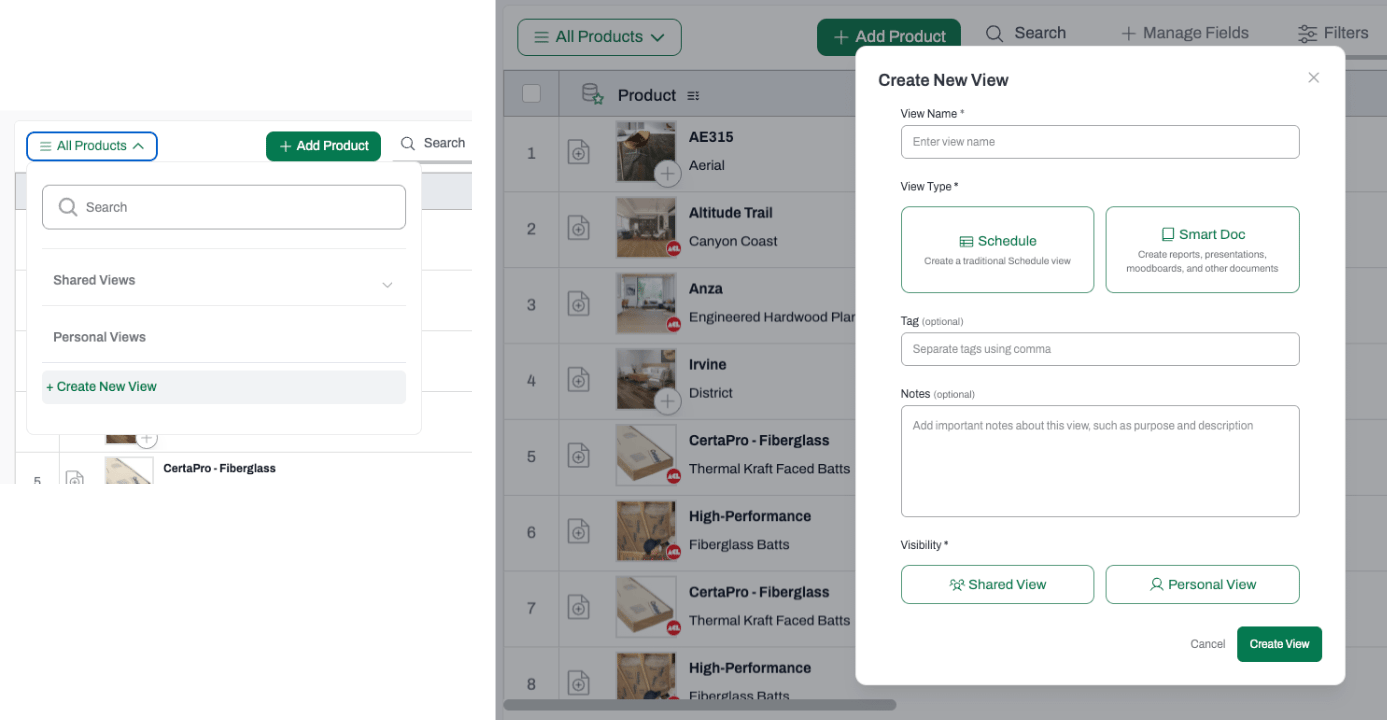

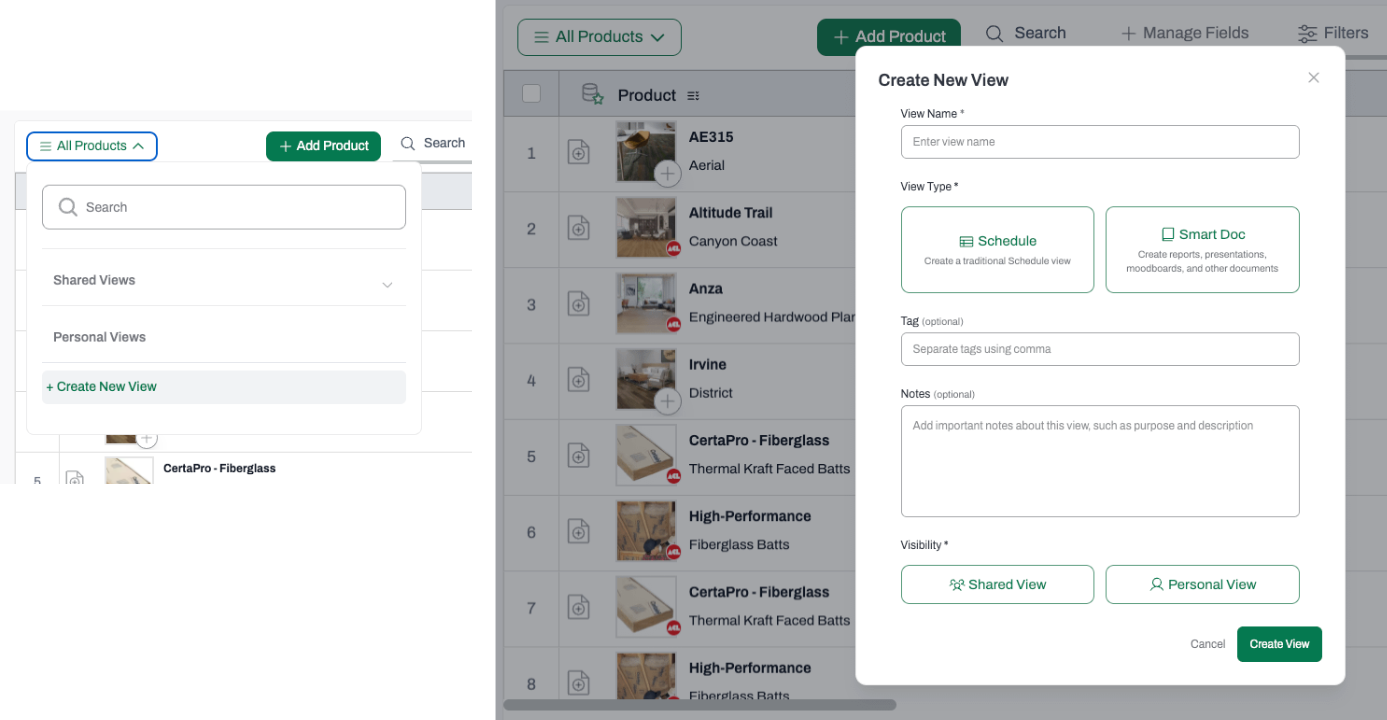

1. From Schedules View. Open your project’s Views menu, click Create New View, then choose Smart Doc (instead of Schedule). Give it a name and set visibility to Shared or Personal, then click Create View.

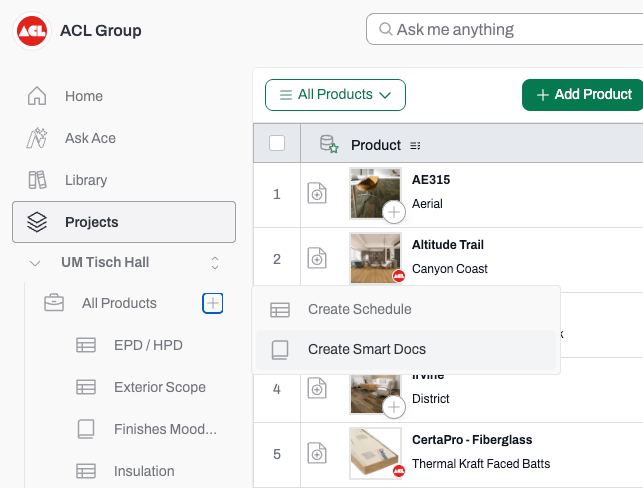

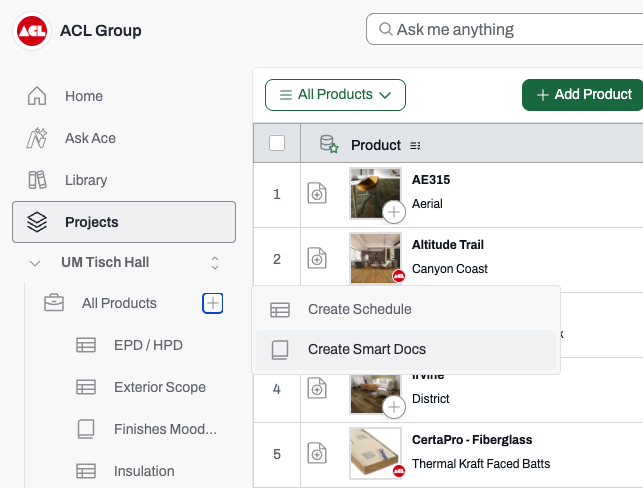

2. From the side navigation. In the project side nav, open the project’s menu (the + CTA), then click Create Smart Docs.

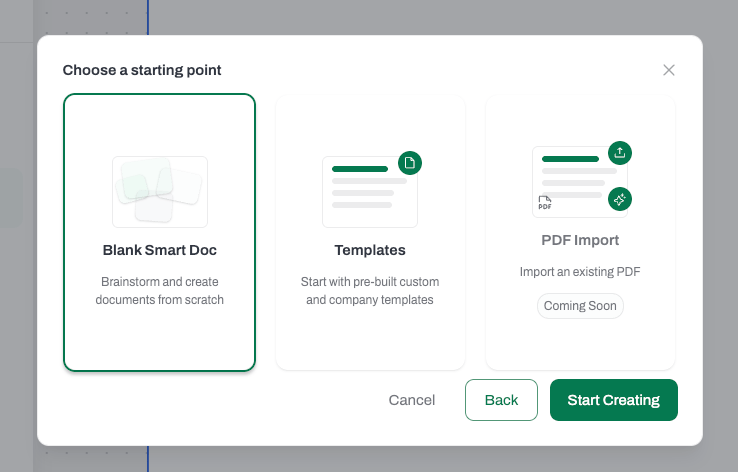

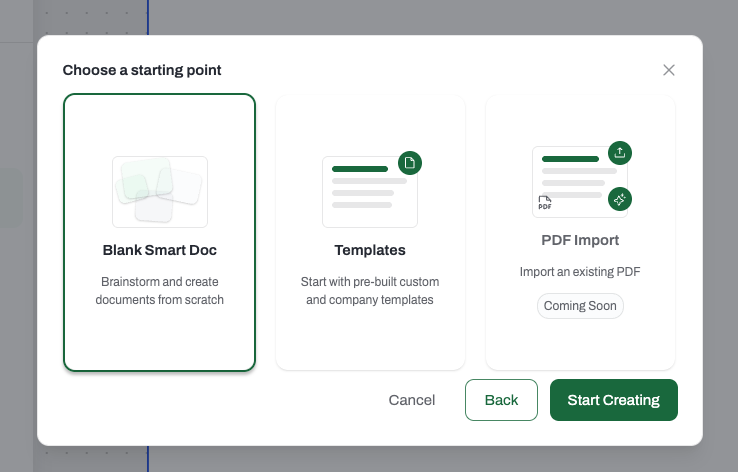

Either entry point opens the Smart Docs editor and drops you into a Choose a starting point modal where you can select Blank Smart Doc, Templates, or PDF Import (Coming Soon).

---

​

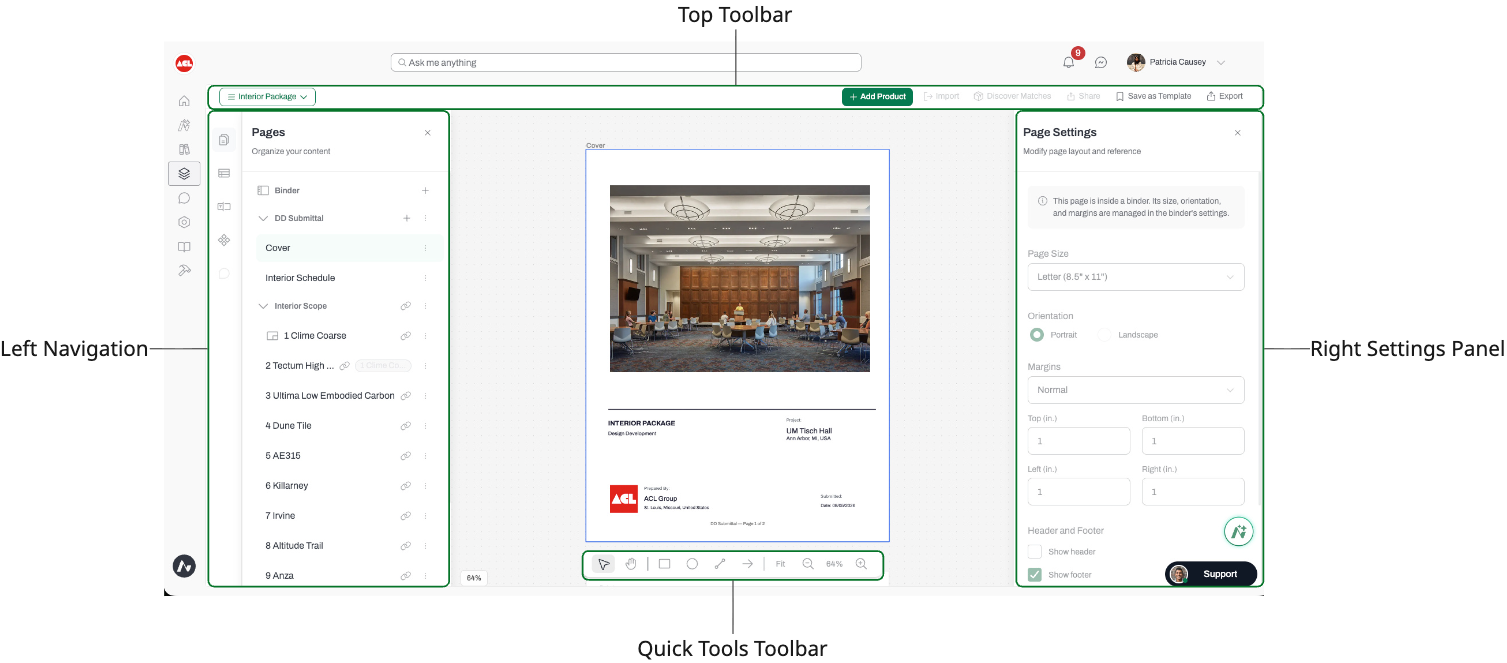

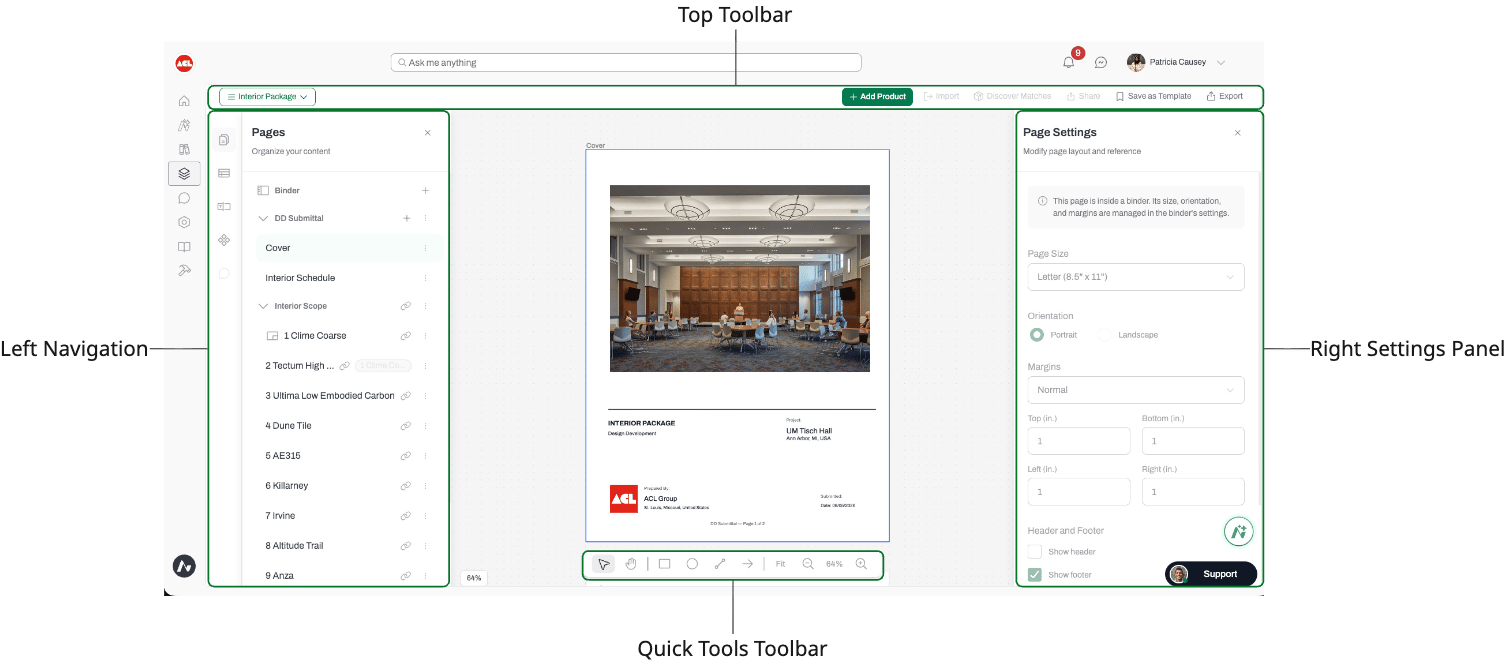

Editor Layout

The editor has four main regions:

• Left navigation — the pages and content library rail.
• Top toolbar — document-level CTAs (Add Product, Save as Template, Export).
• Quick Access toolbar — the floating tool palette that sits over the canvas.
• Right panel — the inspector where you configure the selected page or element.

​

Left Navigation

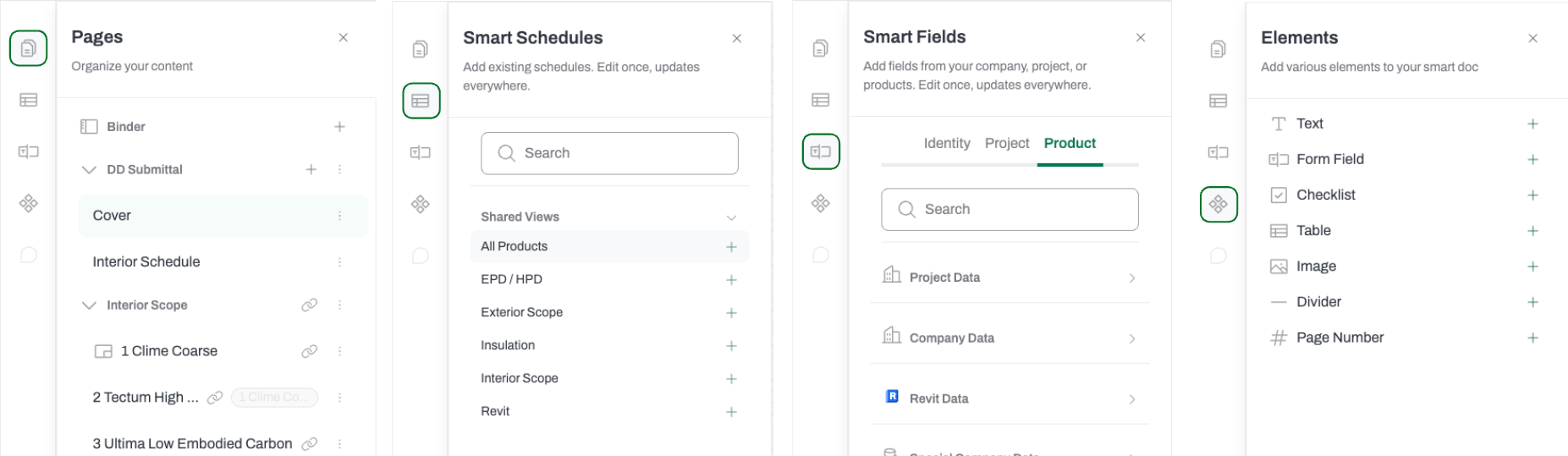

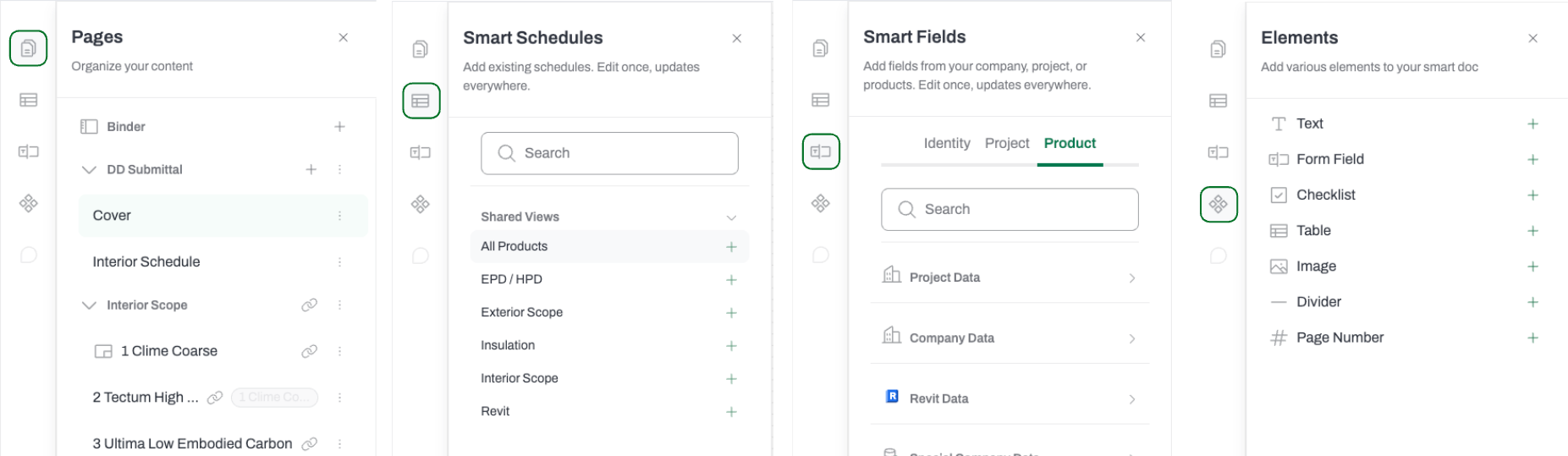

The far-left rail switches between four drawers. Only one is open at a time.

​

Top Toolbar

Runs along the top of the editor. From left to right:

• View switcher — jump between Schedule and Smart Doc views on the current project.
• Add Product — open the product picker and add products to the document.
• Import — Coming Soon.
• Discover Matches — Coming Soon.
• Share — Coming Soon.
• Save as Template — save the current document as a reusable template.
• Export — export the document to PDF.

​

Quick Access Toolbar

A floating toolbar pinned to the bottom center of the canvas. Use it for:

• Cursor / Pan tools.
• Shapes (rectangle, circle, line, arrow).
• Zoom (Fit, Zoom Out, Zoom In, current percentage).

​

Right Panel (Inspector)

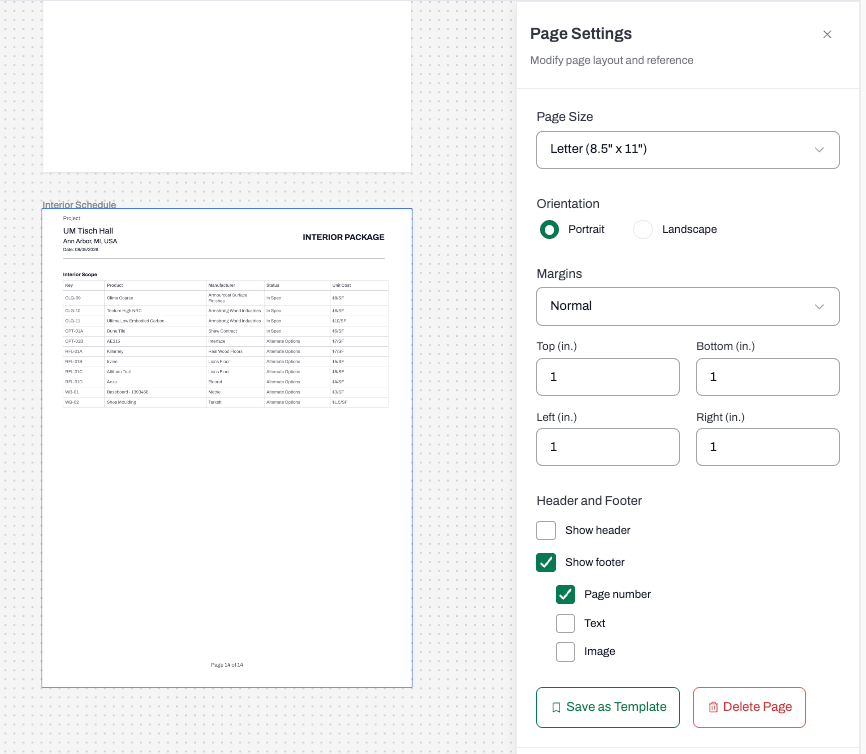

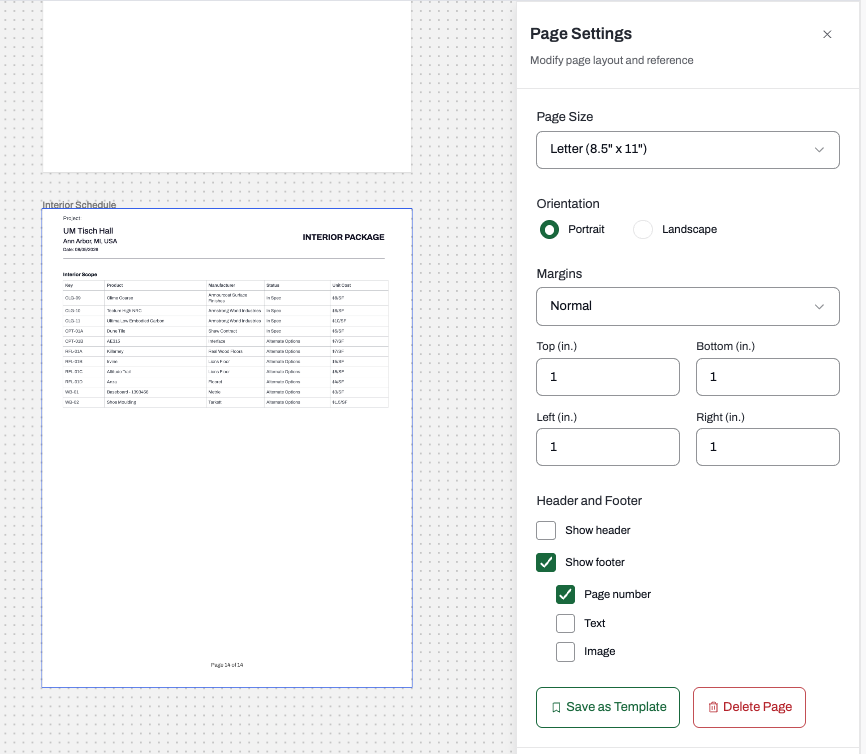

Opens on the right when you select a page, binder, or element setting. It surfaces settings specific to what you selected (page size, background, element properties, table settings, and so on).

---

​

Working With Pages and Binders

​

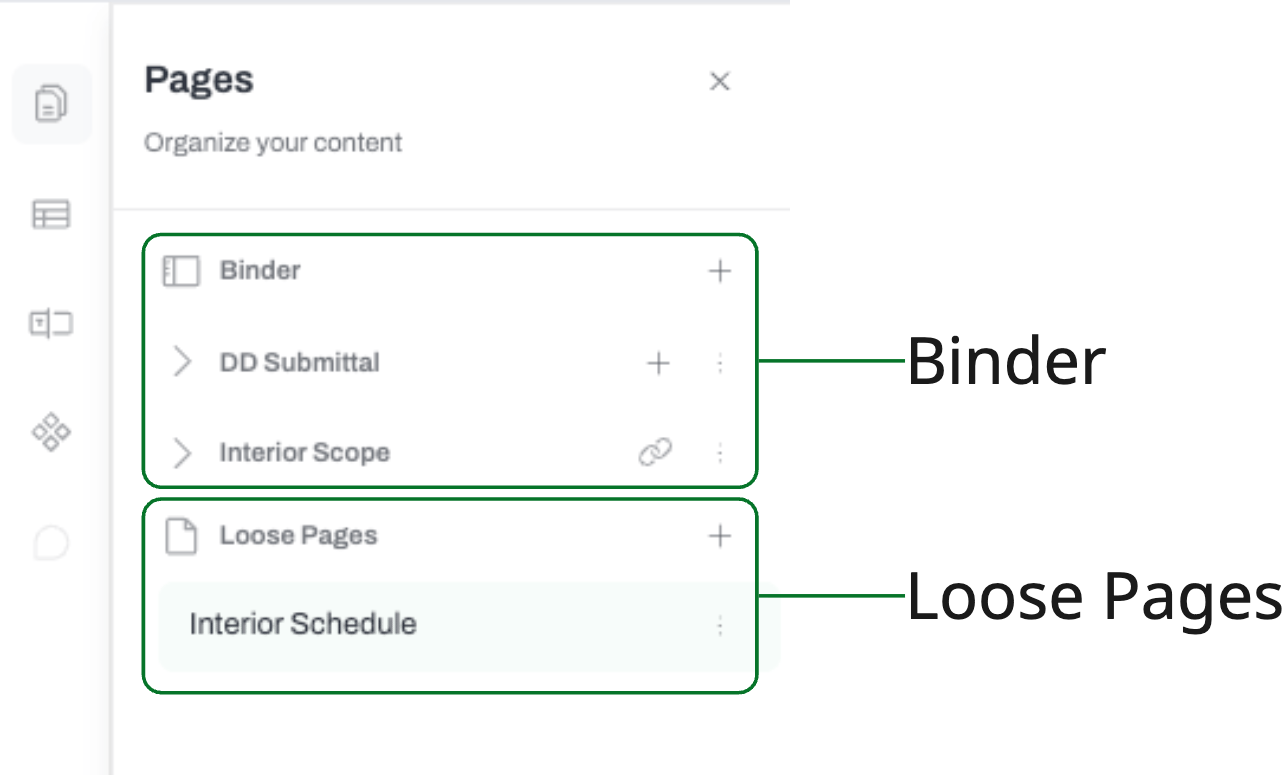

Loose Pages vs. Binders

Loose Pages are standalone pages that live on their own, outside any group. Binders group multiple pages together into a section of your document. Use a Loose Page when you need a single, one-off page (a cover sheet, a divider, a legend, a sign-off page). Use a Binder when you need a group of related pages that belong together, either because you want to organize a section by hand (Custom Binder) or because you want a page per product from a schedule (Reference Binder).

​

Loose Pages

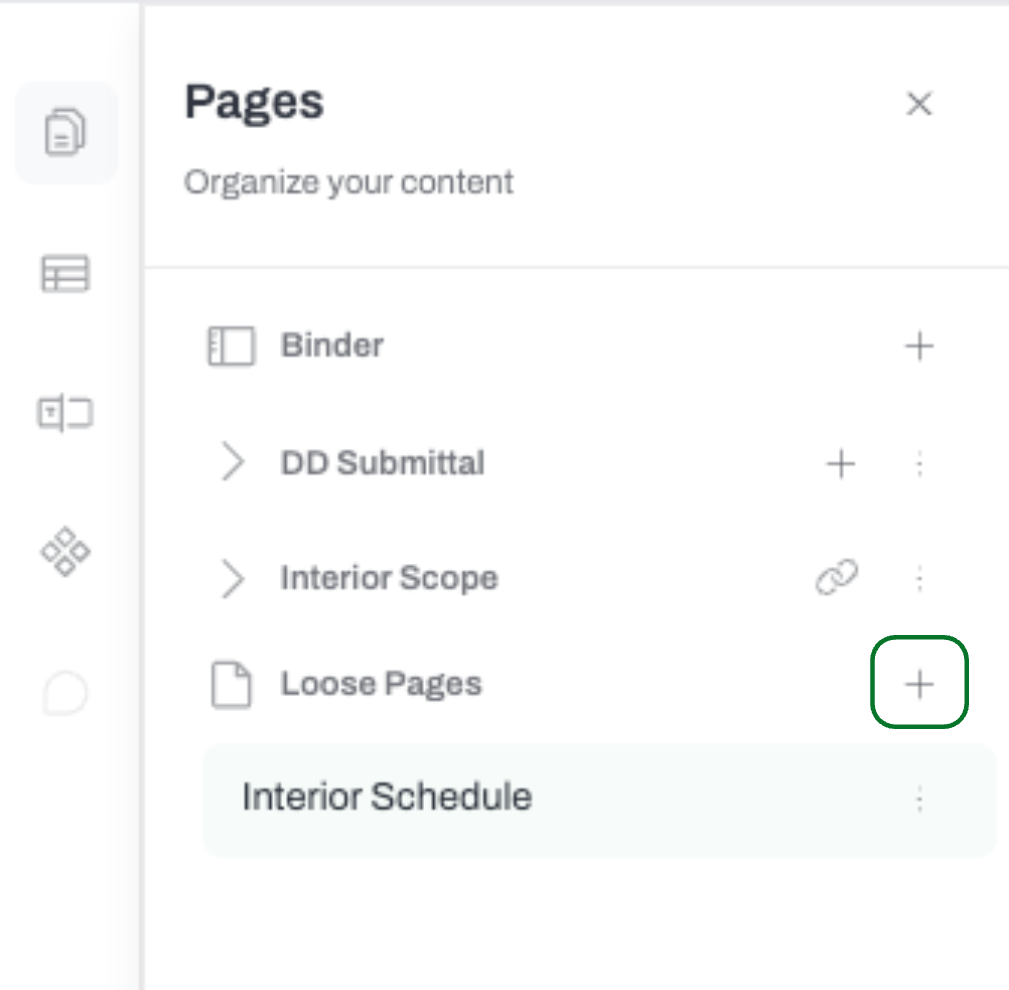

Open the Pages drawer from the left rail to organize your document. Loose pages sit outside any binder. Click the + next to Loose Pages in the Pages drawer to add one. Use loose pages for cover sheets, dividers, or standalone content that doesn’t belong in a binder

​

Custom Binders

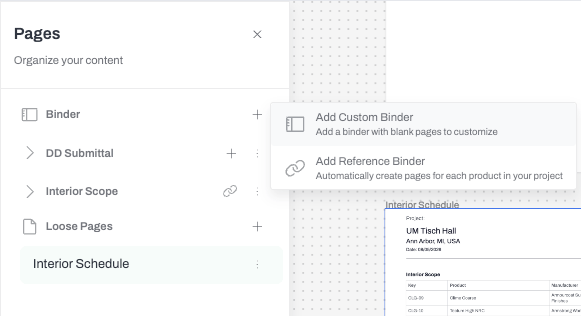

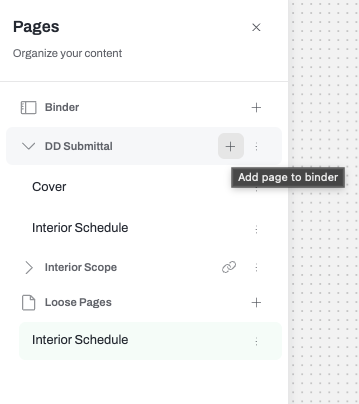

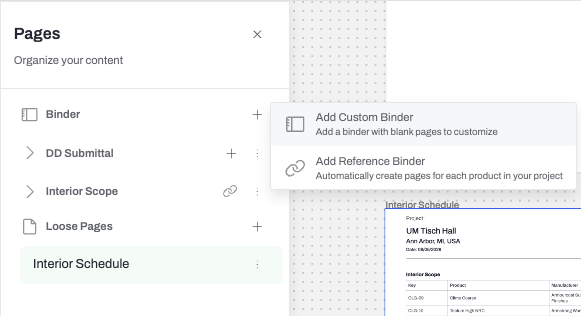

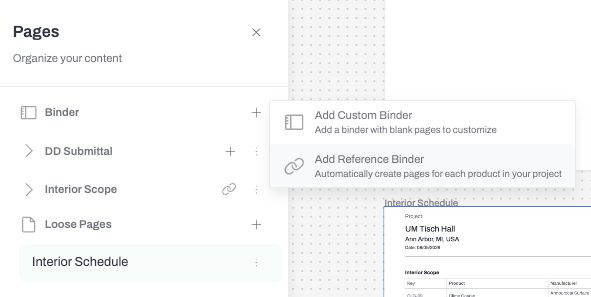

A Custom Binder groups blank pages you fully control. In the Pages drawer, click the + next to Binder and choose Add Custom Binder. Add pages inside the binder with the + on the binder header.

​

Reference Binders

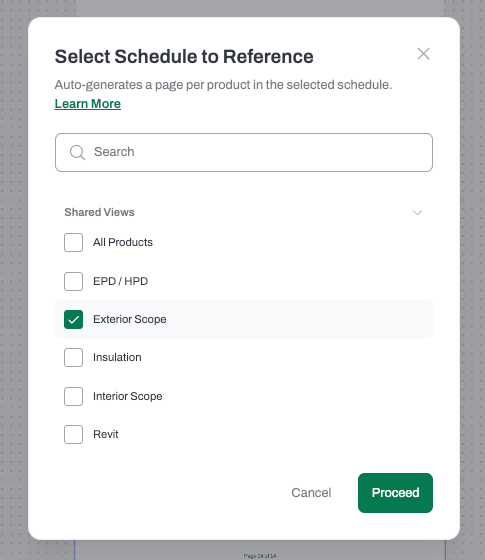

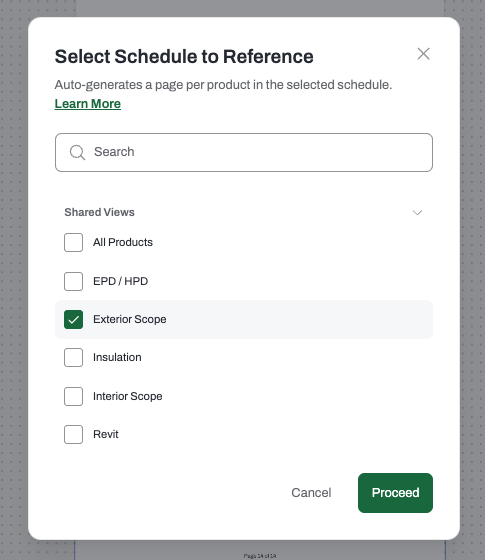

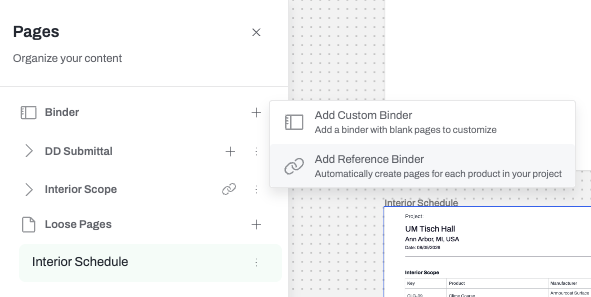

A Reference Binder auto-generates one page per product in a schedule you reference. Click the + next to Binder, choose Add Reference Binder, then pick the schedule to reference. Pages inside a reference binder map 1:1 to schedule rows and can’t be added by hand, they stay in sync with the schedule.

​

Page Templates

Save any page layout as a template so you can reuse it. Open the page’s action menu in the Pages drawer and choose Save as Template. Applying a page template drops the saved layout onto a new page.

---

​

Adding Content

​

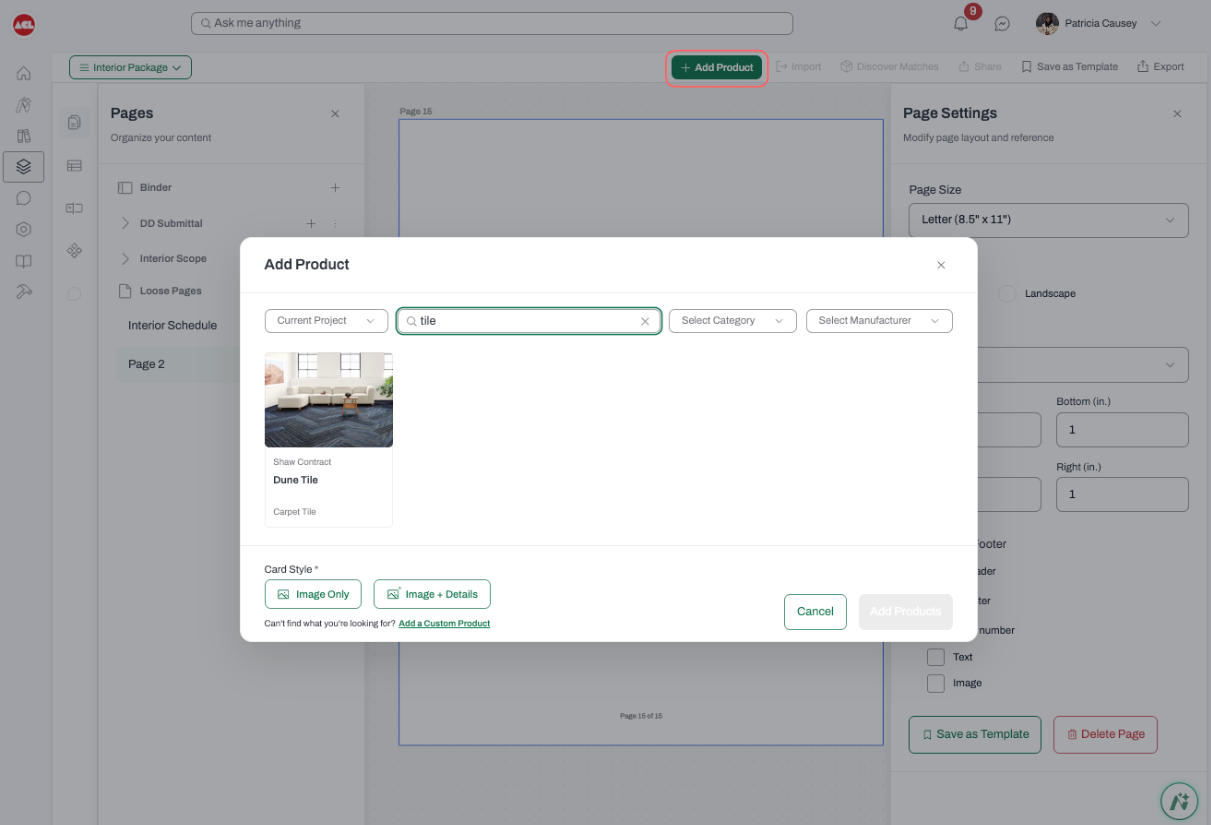

Add Product

The Add Product CTA in the top toolbar opens the product picker so you can pull products from your project’s Schedules into the current Smart Doc. Selected products get their own page inside the linked Reference Binder, pre-populated with the product’s data through Smart Fields. Use Add Product when you want to:

• Assemble a submittal or cutsheet package by pulling in specific products from a schedule rather than including the entire schedule.
• Add newly specified products to an existing Smart Doc without rebuilding pages by hand.
• Curate a subset of products for a client presentation, bid set, or approval package.
• Quickly generate product pages using the layout defined in your Reference Binder, without touching the schedule directly.

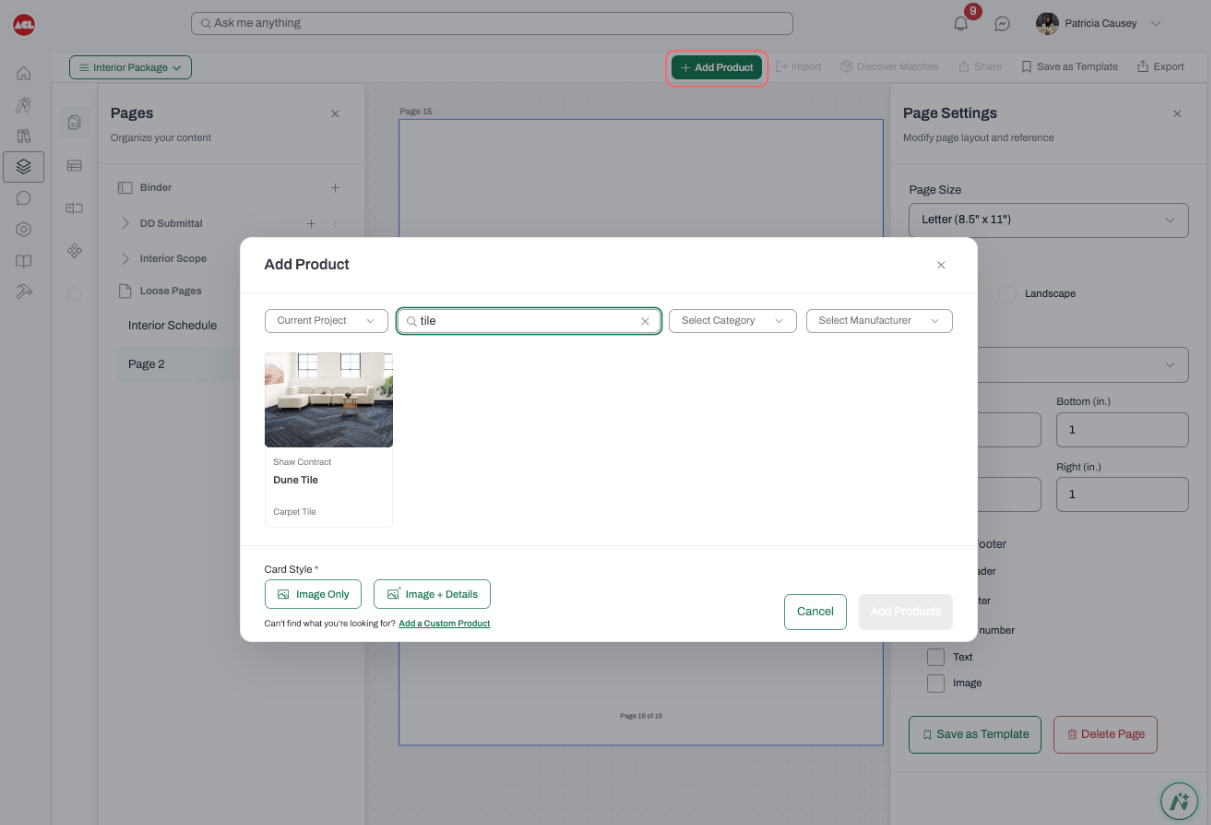

To add a product:

1. Open the Smart Doc you want to add products to.
2. In the top toolbar, click Add Product.
3. In the product picker, select the schedule to pull products from.
4. Browse or search the schedule’s products and check the ones you want to add.
5. Click Add to confirm your selection.
6. A page is generated for each selected product inside the linked Reference Binder, using its layout and Smart Fields.

​

Smart Schedules

Open the Smart Schedule drawer from the left rail. Search for an existing project schedule and click to insert it as a table on the canvas. The table stays connected to the schedule, so edits made in Schedules show up here.

​

Smart Fields

Open the Smart Fields drawer from the left rail. Fields are grouped by tab:

• Identity — company-level fields (default).
• Project — fields from the current project.
• Product — product data fields (per-product context).

Search or scroll for the field you want, then click + to insert it onto the active page. Smart Fields update automatically when the underlying data changes.

​

Document Elements

Open the Smart Doc Elements drawer from the left rail to insert standard building blocks:

• Text
• Form field
• Checklist
• Table
• Image
• Divider
• Page number

Click + next to an element to drop it onto the active page, then configure it in the right panel.

---

​

Saving as a Template

Click Save as Template in the top toolbar to save the current document. In the modal:

• Template Name and optional Tag / Description.
• Toggle Company-wide (admin only) to share the template across your firm. Templates saved without this toggle stay personal.

Saved templates appear in the Template Library on the Choose a starting point modal the next time you create a Smart Doc.

---

​

Exporting

Click Export in the top toolbar to open the export modal. Choose your options and export the document to PDF.
